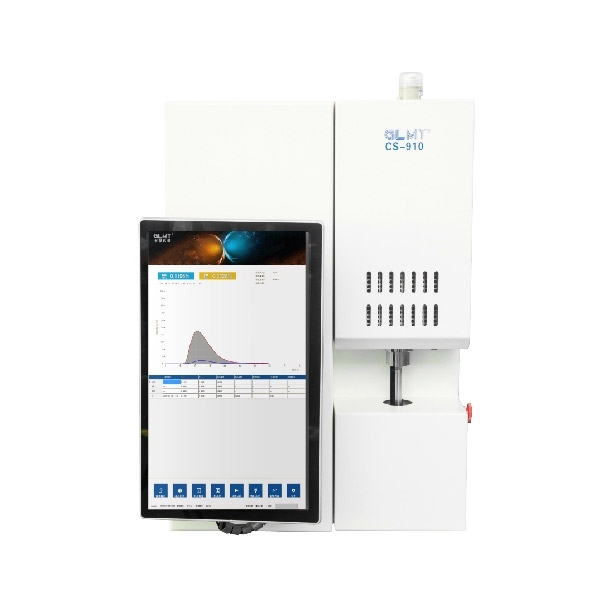

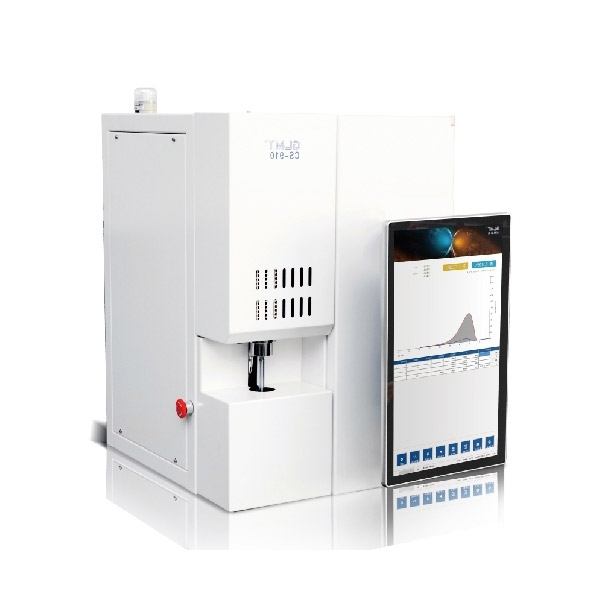

CS-910 High-frequency Infrared Carbon and Sulfur Analyzer

CS-910 HIGH-FREQUENCY INFRARED
CARBON AND SULFUR ANALYZER

CS-910 High-frequency Infrared Carbon and Sulfur Analyzer

دسته: ,
فیسبوکتوئیترپینترسترددیتDeliciousلینکدینواتس اپایمیل

OVERVIEW

Overview

CS-910 Carbon Sulphur Analyzer with high frequency furnace and infrared detection is the ideal instrument for rapid and precise carbon and sulfur analysis in solids, especially with metallic materials but as well with other inorganic materials like ceramics, ores, cement, clays etc. The solid sample is combusted in a ceramic crucible within a sealed high-frequency furnace which is pressurized by a flow of pure oxygen. In order to achieve optimum combustion, the power of the High Frequency furnace is adjustable. The resulting reaction gases CO2 and SO2 are measured by solid-state IR detectors. The system is characterized by its high analytical speed, precision and sensitivity combined with ease of use and almost maintenance free operation.

FEATURES

Features

1.Simultaneous carbon and sulfur determination with minimal sample preparation

2.Easy to use software – we’ve kept it simple so you can focus on analysis

3.Latest Infrared Technology – We use advanced optics – no more gold reflection tube issues

4.Reliable electronics and hardware – easily find faults or blockages common to carbon and sulfur machines

5.Precise and quick measurement

6.Wide range of inorganic materials can be analyzed

7.Low maintenance.

8.Robust design allows usage in production control and laboratory

9.Auto Cleaner :Fully automatic cleaning system with noiseless and vacuum-free dust removal: no routine maintenance, vacuum free dust removal into the crucible



SPECIFICATIONS

Measured elements
Carbon(C) 0.0001%-15.0000%
Sulfur (S) 0.0001%-5.0000%
Samples
inorganic
Electronic balance
Weighing range: 0-100g
(resolution 0.0001g),
Furnace alignment
Vertical
Sample carrier
ceramic crucibles
Field of application
construction materials, engineering / electronics, geology / mining, glass / ceramics, steel / metallurgy
Furnace
High frequency furnace, 3.5KVA 20MHz
Detection method
solid state infrared absorption
Typical analysis time
26 – 60 s, Average: 35 s
Gas required
Industry Oxygen 99.2 %
Power requirements
AC220 V, ±5%     50Hz±2%
Dimensions (W x H x D)
54 x 81 x 60 cm
Weight
80kg
Required equipment
Electronic balance, monitor, PC
Operating temperature
0-30 ℃ RH:<75%
Optional accessories
Printer, PC

U

APPLICATIONS

Applications

CS-910 High-frequency Infrared Carbon and Sulfur Analyzer analysis in solids, especially with metallic materials but as well with other inorganic materials like ceramics, ores, cement, clays etc.
