CX-9800(T) BENCH TOP SPECTROMETER

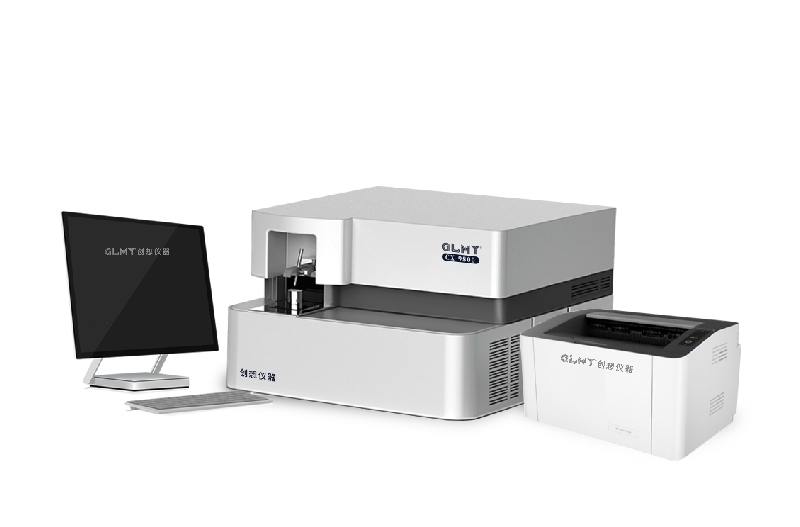

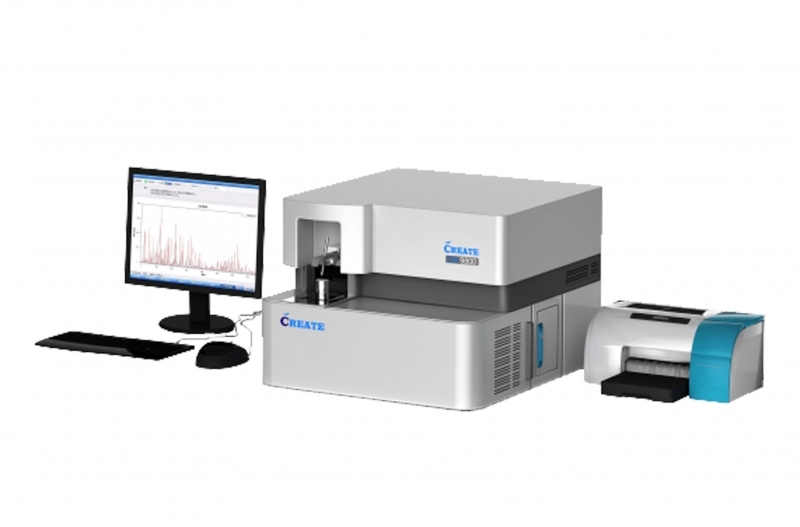

CX-9800(T) Bench Top Spectrometer
Overview
The CX-9800 Spectrometer can be figured as a bench top or floor model with storage possibilities for consumables and spares. With two versions to choose from, individual requirements are sure to be met. The versions differ in the outlook but same in the optical systems. CX-9800 Bench Top Spectrometer is most suitable instruments for the determination of various elements in different matrices.
Features :
1. High accuracy and affordable.
2. Complete analysis within a few seconds.
3. Optimized to customer requirements and optimal advisory services.
4. Extreme sensitivity due to latest CCD technology and software.
5. Adding additional analysis modules without any change of hardware.
6. Technology support and software update for free.
7. Wavelength coverage 130nm-800nm, permitting simultaneous analysis for up to 31 elements.
8. Available for routine analysis of small sample, diameter from 1mm to 8mm.
9. Humanized design, configuring as a bench top or floor model with storage possibilities for consumables and spares.
Specifications:
|
Optical System
|
Optical Structure
|
Paschen-Runge mount
|
|
Rowland circle of diameter
|
400nm
|
|
|
Wavelength range
|
130nm-800nm
200nm-800nm
|
|
|
Detector
|
High resolution CCD Multi detectors
|
|
|
Degree of vacuum
|
Auto control within 6-15 pa
|
|
|
Pixel resolution
|
10pm
|
|
|
full spectrum
|
||
|
Light room temperature is controlled automatically
|
||
|
Spark Source
|
Type
|
Digital arc and spark source/
New plasma generator
|
|
Spark Frequency
|
100-1000HZ
|
|
|
Plasma current
|
1-80A
|
|
|
Ignition voltage
|
>7000V
|
|
|
Spark Stand
|
Argon flushed with minimal consumption of Argon
|
|
|
Spray discharge electrode technology
|
||
|
Adjustable sample clamp
|
||
|
Others
|
Measurable elements
|
Fe base, Al base, Cu base, Zn base, ect
|
|
Dimension
|
800mm(L)*700mm(W)*470mm(H)
|
|
|
Weight
|
About 100kg
|
|
|
Storage Temperature
|
0℃-45℃
|
|
|
Operating temperature
|
10℃-30℃, 23±2℃ is recommended
|
|
|
Power
|
AC220V/50Hz (Customized)
|
|
|
Power consumption
|
Excitation: 700W / Stand by:100W
|
|
|
Argon quality
|
99.999%, Argon pressure >4Mpa
|
|
|
Argon consumption
|
5L/min during spark mode
|
|
CX-9800 Floor Model Spectrometer is designed by Wuxi Create Analytical Instrument Co., LTD. By using the CCD technology, the CX-9800 is a preferred choice for the analysis of the elements concentration in metal. This instrument is widely used in the areas of metallurgy, foundry, machinery, automobile manufacturing, aerospace industry, weapon manufacture, metal processing and other fields.
