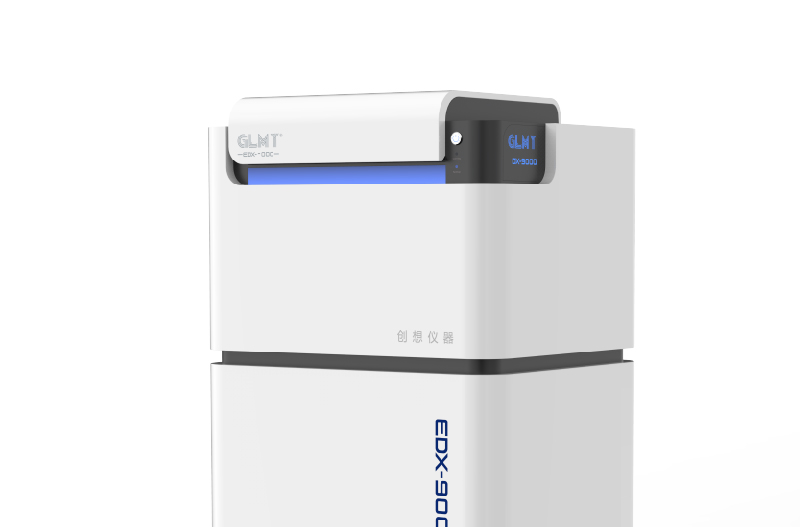

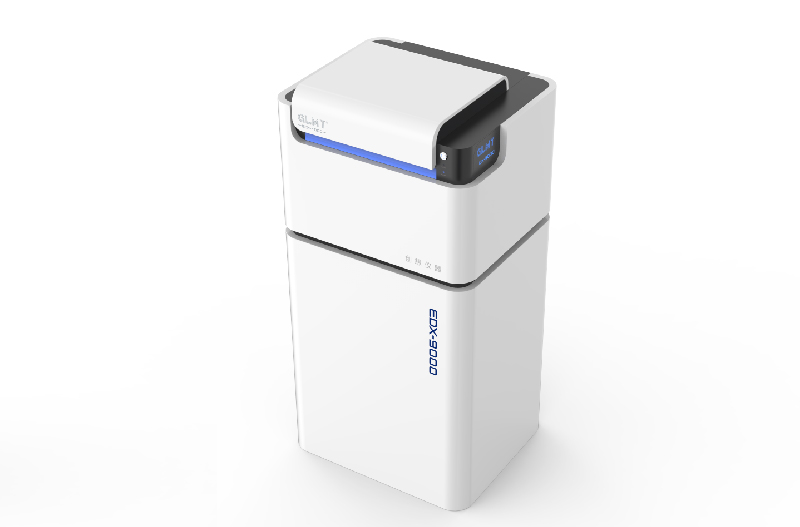

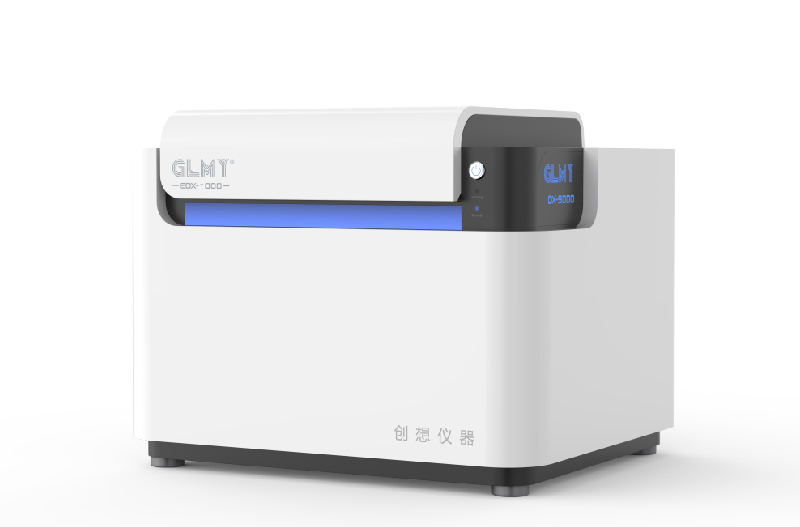

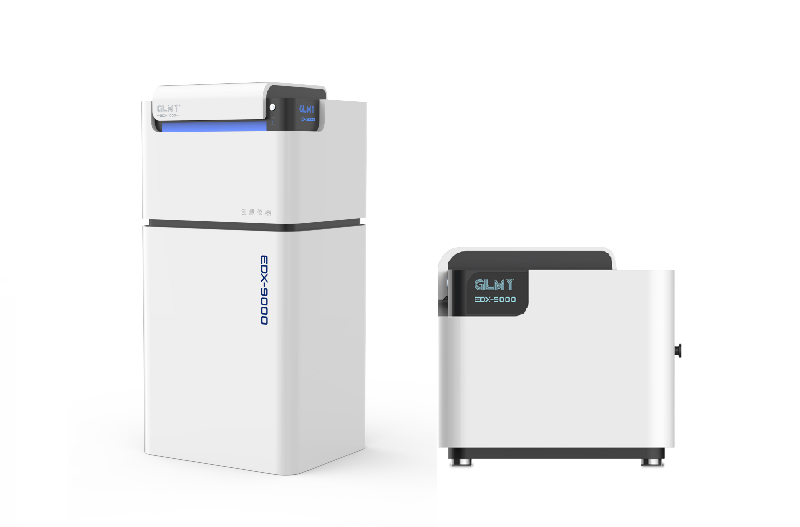

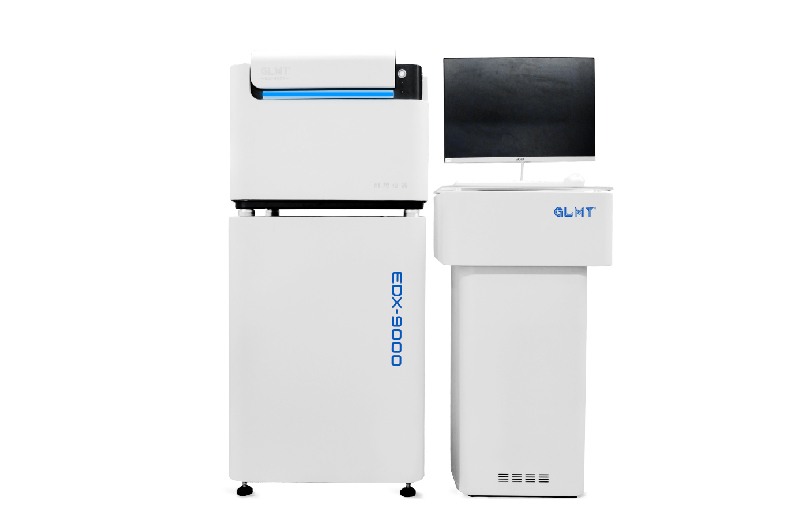

EDX-9000PRO X-RAY FLUORESCENCE SPECTROMETER
X-ray fluorescence analyzer provides stable, most accurate and most economic methods for the determination. It is an ideal analyzer to control the quality of products.
It can be used for wide range of elements, from Na(11)-U（92）. The Silicon Drift Detector with multi-channel analyzer detects the X-ray fluorescence radiation and accumulates counts to form an intensity versus energy spectrum of the sample.
X-ray fluorescence analyzer provides stable, most accurate and most economic methods for the determination. It is an ideal analyzer to control the quality of products.
It can be used for wide range of elements, from Na(11)-U（92）. The Silicon Drift Detector with multi-channel analyzer detects the X-ray fluorescence radiation and accumulates counts to form an intensity versus energy spectrum of the sample.
1.Highly efficient and extremely thin window X-ray tube which achieves international advanced level.
2.Silicon Drift Detector (SDD), great energy linearity,excellent energy resolution and spectrum, high peak/base rate
3.Low energy X-ray excitation to elements, great excitation to Si, P and other light elements
4.Intelligent vacuuming system eliminates air influences, which greatly improves testing range
5.Automatic spectrum-stabilizing device ensures stability of the instrument
6.High Signal-to-Noise electronic circuit unit
7.Automatic switch of collimators and filters instead of manual operation
8.Analysis spectrum technology ensures great repeatability
9.Multi-parameter linear regression method restrains absorptions between different elements
10.Built-in HD camera
11.LCD screen directly displays testing results (tube voltage, tube current, and vacuum degree)
Specifications:
| TECHNICAL PARAMETER | |
| Analysis range | From Na(11) to U(92) |
| Lower limit | 1ppm-100ppm |
| Sample shape | Soild/Power |
| Sample room size | φ270x100mm |
| X-Ray Tube Target | Optional |
| X-Ray Tube Voltage range | 5-50kV |
| X-Ray Tube Current range | 1-1000μA |
| Collimator | 2,4,6,8mm |
| Detector | Fast SDD detector |
| Pre-Amp | Imported |
| Main amplifier | Imported |
| AD conversion module | Imported |
| Counting Ability | 1300000 |
| Filter | CPS |
| Sample observation | 1.3 million pixels of CCD camera |
| Analysis software | Proprietary soft products
Free lifetime upgrade |
| Test method | The oretical a-coefficient Method,FP and EC |
| Test environment | Temperature:10-35℃ Humidity:30-70%RH |
| Dimension and Weight | 600(W)*500(D)*500(H)mm 60kg(Host) |
| Power supply requirements | AC22010%、50/60Hz |
| Test time | 100-300s(Adjustable) |
