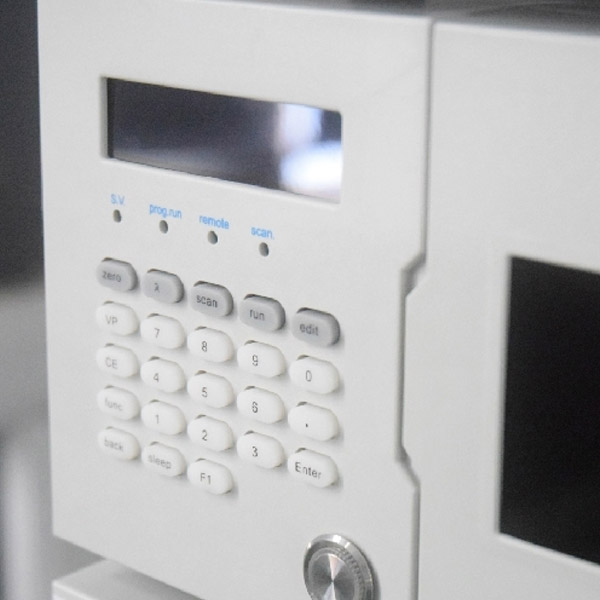

LC-60Tvp High Pressure Solvent Delivery System

LC-60TVP HIGH PRESSURE SOLVENT DELIVERY OVERVIEWSYSTEM

LC-60Tvp Liquid Pump can be connected to any sort of Liquid detector, so widely applied in the field of HPLC. laboratory chemical reaction infusion and chromatography and etc.

دسته: ,
فیسبوکتوئیترپینترسترددیتDeliciousلینکدینواتس اپایمیل

OVERVIEW

LC-60Tvp Liquid Pump was developed on the basis of STI501 Liquid Chromatography, adopted advanced technology and design of the United States.

LC-60Tvp Liquid Pump can be connected to any sort of Liquid detector, so widely applied in the field of HPLC. laboratory chemical reaction infusion and chromatography and etc.

FEATURES

  • Unique pool structure ensures the accuracy and sensitivity of the instrument
  • Easy maintenance and service for all wetted parts
  • High-quality structure
  • Long life deuterium lamp
  • Improve the maximum limited pressure by precise tranducer
  • Accord with GMP/GLP, ISO9001,21 CFR PartⅡwith Surwit CDS(Software)
  • Online Washing Device while analysis
  • Self-priming pump head requires no manual priming
  • Available with micro, analytical, semi-prep, and prep pump heads
  • Programmable solvent compressibility compensation
  • Easy maintenance and service for all wetted parts

SPECIFICATIONS

Flow Range 0.001-9.999ml/min
Delivery method Double piston(Main & Auxiliary)
Pump head 10ml SST/Peek analytical
Accuracy ±1% or ±2µL/min, whichever is greater
±1% or± 1µL/min, whichever is greater(Micro)
Flow rate setting 0-0.10ml/min. 0.010inc.
0.10-0.90ml/min 0.010inc.
1.0ml/min +0.10inc
Precision 0.1% RSD
Pmax 9999psi
System connections 1/66’’ capillaries
Dimensions H60mm*W260mm*D420mm
Weight. 11kg
Power input 85 to 264VAC, 47 to 63 Hz, 60 Watts
Display 300mm
